Keyin LX Series
02 — Slim Flagship
Keyin LX Series

The Slimmest Smart Lock Ever Created.

Perfect, intuitive bar-shaped design with instant locking and expandable smart connectivity.

The Keyin LX door lock goes a step further than instant locking by featuring a perfect, most intuitive bar-shaped design. It is a true smart door lock that allows for IoT connectivity and facial recognition expansion to suit customer preferences even after initial installation.

  • Patented Anchor™ full-motorized mortise meeting global standards
  • Immediate locking — redesigned from the core; no delay, no vulnerability
  • No lever handle operation — ergonomic slim bar shape
  • IoT integration: Bluetooth 5.0 · Zigbee 3.0 · RF447 MHz
  • Unique fire-rated technology designed by RAONARK
  • Facial recognition expansion ready after installation
  • Double open/close button with static-electricity detection
  • Anti-peep PIN, anti-theft alarming, EMP resistant
  • Password — anti-peeping touch keypad with PIN randomizer
  • RFID card & stickers
  • Fingerprint recognition
  • Keyin mobile app
  • Emergency mechanical keys
  • Smart Touch & Smart Pass via BLE geofencing
External Body (W×H×D)79.4 × 403.4 × 68 mm
Inner Body (W×H×D)79.4 × 403.1 × 50.5 mm
Door Thickness40 – 100 mm

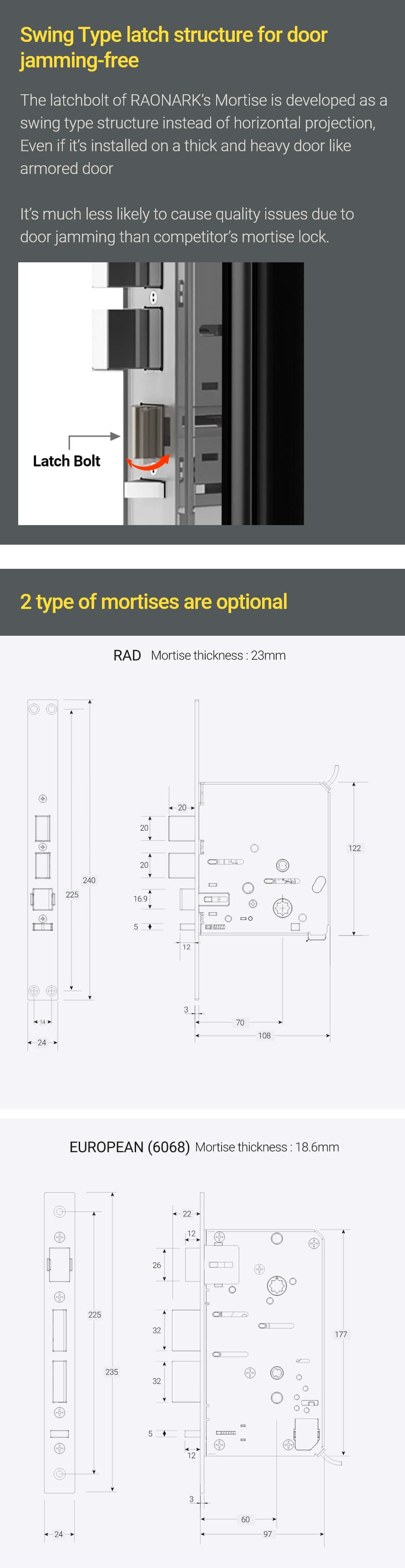

Mortise Thickness18.6 mm (European 6068) · 23 mm (RAD)
ColorsChampagne Gold · Satin Silver
Request a quote in UAE Instruction manual (PDF)
EntryPassword · Card · Fingerprint · App
Door thickness40 – 100 mm
Front body79.4 × 403.4 × 68 mm
Main body79.4 × 403.1 × 50.5 mm
ConnectivityBLE 5.0 · Zigbee 3.0 · RF447
Keyin LX

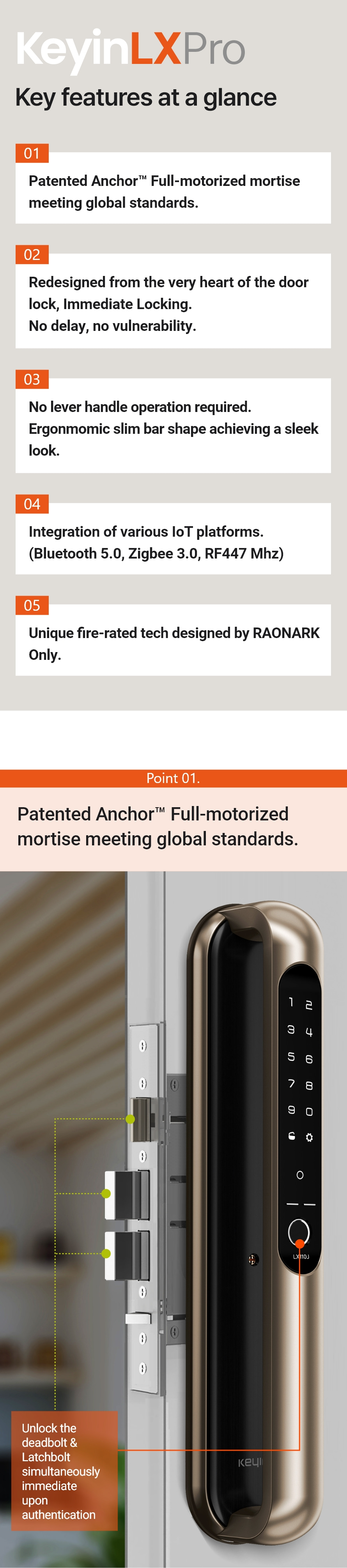

Key features at a glance

Keyin LX — five key features at a glance
  1. 01Patented Anchor™ full-motorized mortise meeting global standards.
  2. 02Redesigned from the very heart of the door lock — immediate locking. No delay, no vulnerability.
  3. 03No lever handle operation required. Ergonomic slim bar shape achieving a sleek look.
  4. 04Integration of various IoT platforms. Bluetooth 5.0 · Zigbee 3.0 · RF447 MHz
  5. 05Unique fire-rated technology designed by RAONARK only.
Point 01

Patented Anchor™ full-motorized mortise meeting global standards.

Keyin LX unlocks deadbolt and latch bolt simultaneously

Unlock the deadbolt & latch bolt simultaneously, immediately upon authentication.

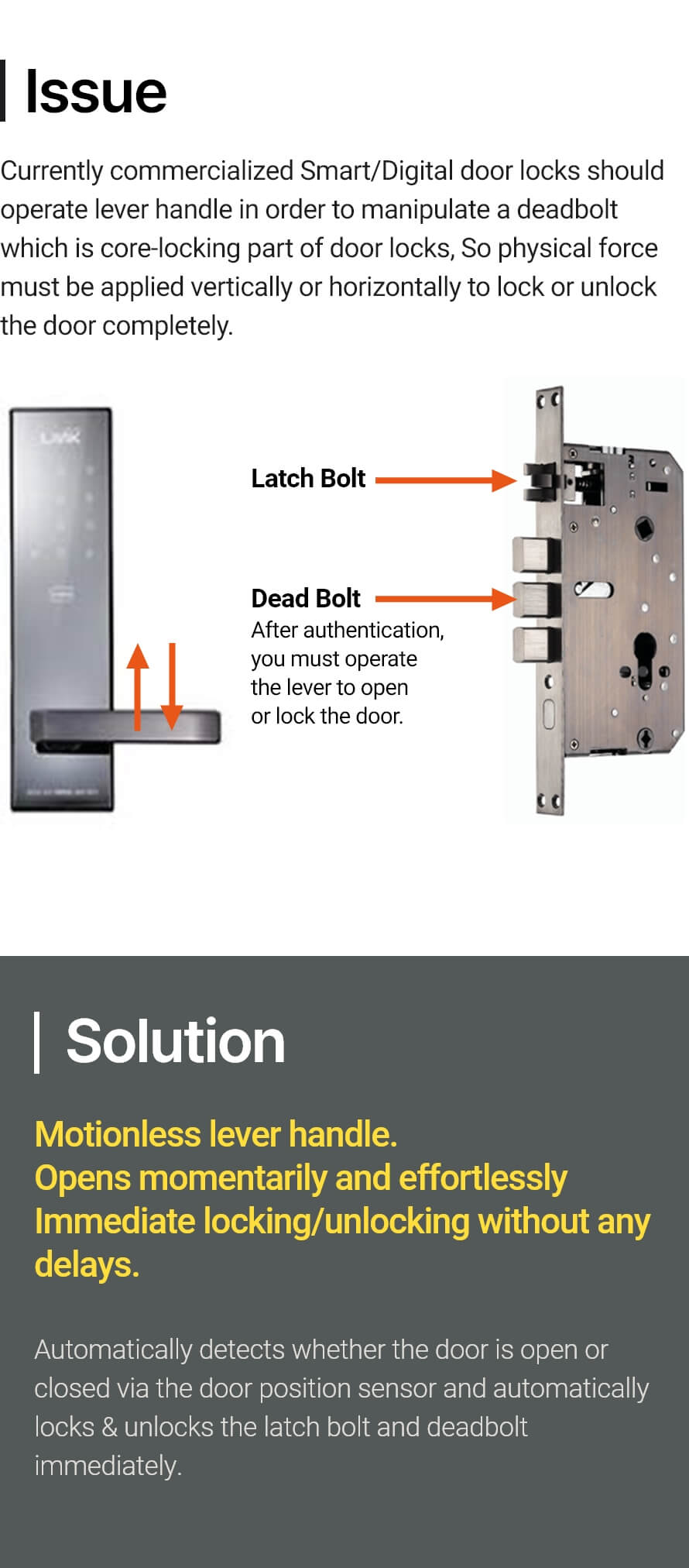

Point 02

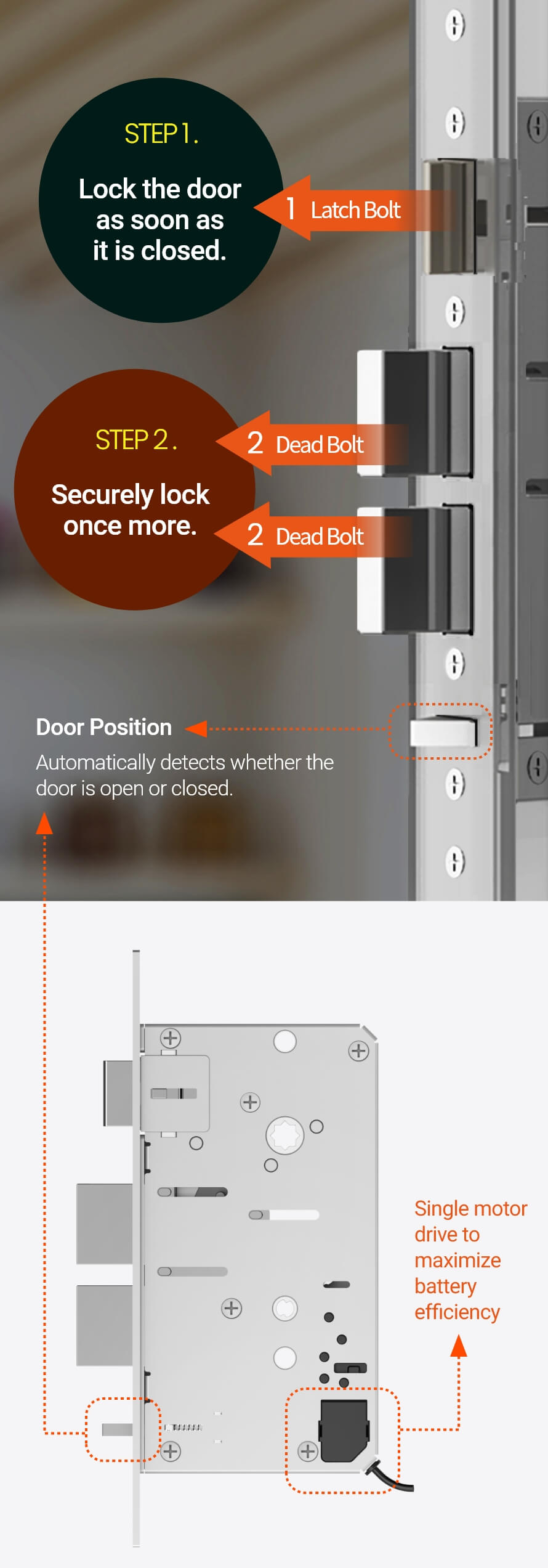

Redesigned from the very heart of the door lock — immediate locking.

Keyin LX immediate locking

No delay, no vulnerability — locks the instant the door closes.

Point 03

No lever handle operation required. Ergonomic slim bar shape.

Keyin LX slim bar design

Push to open — a sleek vertical profile built for modern interiors.

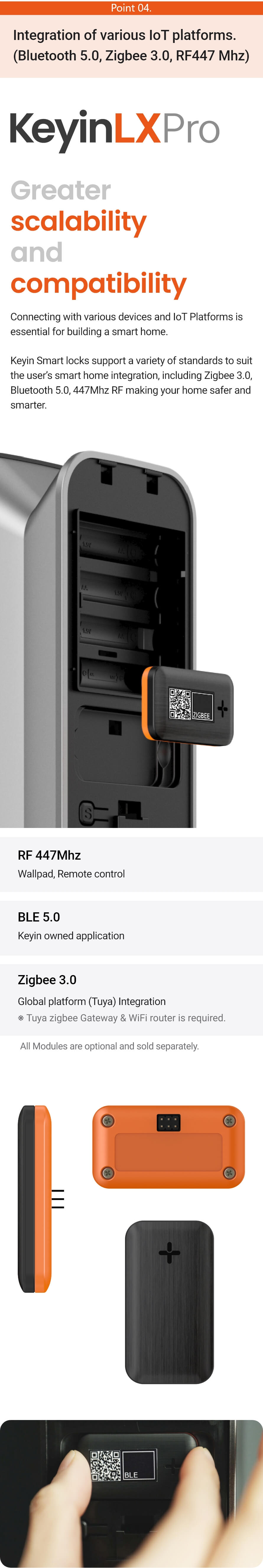

Point 04

Integration of various IoT platforms.

Keyin LX IoT connectivity

Bluetooth 5.0 · Zigbee 3.0 · RF447 MHz — expandable smart connectivity.

Point 05

Unique fire-rated technology designed by RAONARK only.

Keyin LX fire-rated technology

Patented fire safety engineering — the same RAONARK standard trusted on Keyin L.

Keyin LX facial recognition expansion

Specify Keyin LX for your UAE project

European 6068 mortise, immediate locking, and the slimmest smart-lock profile on the market.
